Thermocouples
Here at Quick Heat, we manufacture a large selection of industrial types of thermocouples/sensors which suit your specific requirements and applications. They are available in Mineral Insulated (MI) format and Platinum Resistance Thermometers (PT 100′s).
Description

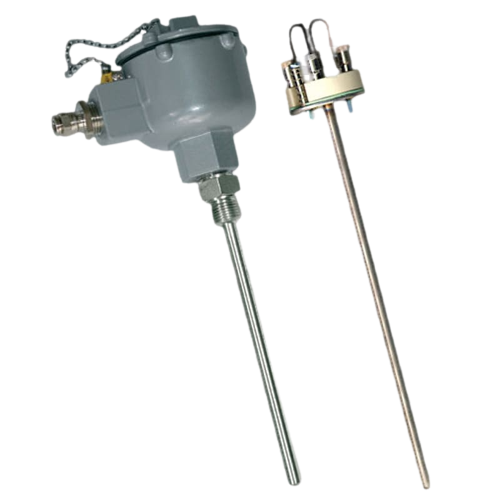

Mineral insulated thermocouples are extremely robust temperature sensors, suitable for arduous conditions over the temperature range of -200°C to + 1250°C. Sheaths can be generally bent, twisted and flattened to suit your application without impairing the performance. For standard types of thermocouples, have a look at our thermocouple chart which will provide you with the right information when ordering.

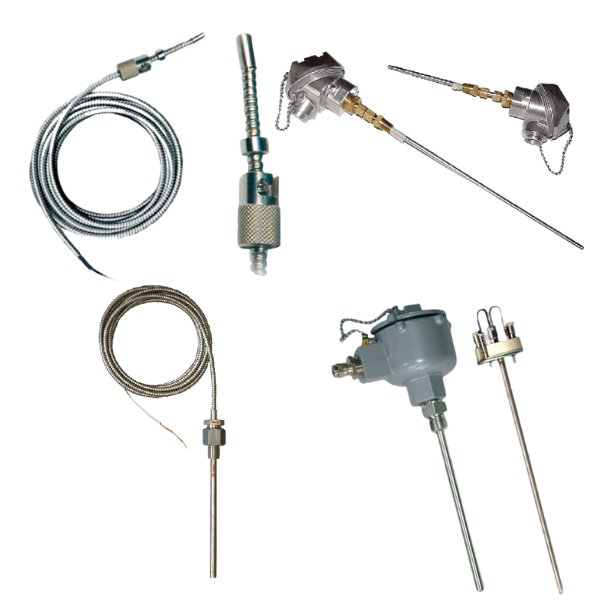

Available types of thermocouples include K, J, with sheath diameters from 0.25mm Ø and PT 100′s. Wide choice of terminations are also available e.g. terminal head, connector, cable, Plug & Sockets. Probe diameters available for thermocouples.
| Ø | Ø | Ø |
|---|---|---|
| 3mm | 4.5mm (3/16”) | 6mm ( ¼”) |
| 4mm | 5mm | 8mm |
Extras available :-
Thermocouple Cable Clamps ( standard )
Thermocouple Cable Clamps ( miniature )
Panel Fascia Sockets ( standard )
Panel Fascia Sockets ( miniature )
| Braided Compensating Cable | PVC Compensating Cable |
| Type J – 7 Strand Type J – 13 Strand Type K – 7 Strand Type K – 13 Strand | Type J – 7 Strand Type J – 13 Strand Type K – 7 Strand Type K – 13 Strand |
